Model
Configurations, model portions, model create and deconstruct.
Configuration
See the component in use in the script library: Continuous multispan beam.
Inputs
| Name | Id | Description |
|---|---|---|
| ForcePreviewScale | FPS | Scaling factor for the force preview arrows. |
Frame corner wizzard
See the component in use in the script library: Tapered frame with results.
Inputs
| Name | Id | Description |
|---|---|---|
| On | O | Should be the FrameCornerWizard be on or off? |
| Portions | P | Which model portions should be considered by the wizard. |
Outputs
| Name | Id | Description |
|---|---|---|
| ConSteel Frame Corner Wizard Settings | FCW | Configures the FrameCornerWizard object in ConSteel model. |
Consteel Global Model Settings
See the component in use in the script library: Tapered frame with results.
Inputs
| Name | Id | Description |
|---|---|---|
| SelfWeightCase | SWC | Load case that should contain auto generated self weight of structural objects. |
| EigenValUpperLimit | EL | The upper limit of relevant eigenvalues during buckling calculation. |
Outputs
| Name | Id | Description |
|---|---|---|
| ConSteel Global Model Settings | GMS | Represents global model settings in ConSteel model. |
Portion Folder
See the component in use in the script library: Purlin distribution, evaluation and model merging.
Inputs
| Name | Id | Description |
|---|---|---|
| Items | I | Items in this portion folder. |
| Name | N | Name of the portion folder. |
| Visible | V | Should be the portion folder visible? |
Outputs
| Name | Id | Description |
|---|---|---|
| CSPortionFolder | PF | The created ConSteel PortionFolder. |
Model Portion
See the component in use in the script library: Tapered frame with results.
Inputs
| Name | Id | Description |
|---|---|---|
| CornerType | CT | If the Frame Corner Wizard is active, how should the corners be handled. |
| Items | I | Items in this portion. |
| Name | N | Name of the Model Portion. |
| Visible | V | Should be the ModelPortion visible? |
Outputs
| Name | Id | Description |
|---|---|---|
| CSModelPortion | La | The created ConSteel ModelPortion. |
Structural Group
Inputs
| Name | Id | Description |
|---|---|---|
| Name | N | Name of the created Structural Group |
Outputs
| Name | Id | Description |
|---|---|---|
| ConSteel structural group | CSStructuralGroup | Represents a structural group in ConSteel model. |

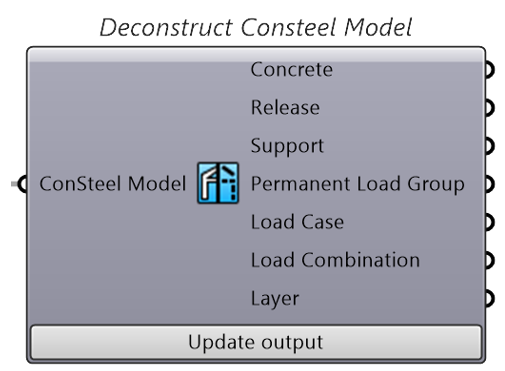

Deconstruct Consteel Model
See the component in use in the script library: Continuous multispan beam.
Inputs
| Name | Id | Description |
|---|---|---|
| Consteel Model | CSM | Consteel Model Object |
Outputs
Dynamically can change depending on the model objects.
Consteel Model
See the component in use in the script library: Simple Cantilever Beam.
